Schwarze-Robitec GmbH COLOGNE, Germany
Schwarze-Robitec GmbH

Decades of experience in developing, manufacturing and maintenance of tube cold bending machines; Qualified, motivated and customer orientated staff is the basis for technological advantage and quality; Quality assurance through ISO 9001 certification (TUV certificate); Training company for technical and commercial professions; Continuous new developments and usage of most advanced machinery is a matter of course; Employees: 130; 43,000 m² surface area and 12,000 m² of workshop area; Competence by the sale of over 2,400 tube bending machines;



Presentation: www.schwarze-robitec.equip4ship.com

Address: Germany, COLOGNE, 51109 Olpener Str. 460-474

Contact person: Managing Director Bert Zorn ,e-mail, website

Phone: +49 221 890080

Fax: +49 221 890089920



Catalogue of products (25)
Send enquiry

unselect all/select all You have 0 products selected

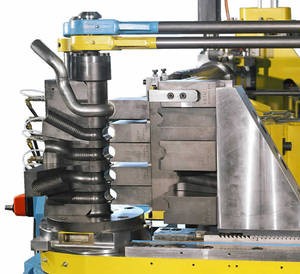

5-Stack Bending Tool Send enquiry
5-Stack Bending Tool
Loading of one CNC 60 E TB MR for the exhaust manifold production.


CNC 60 HD Hydraulic Tube Cold Bending Machine, CNC multi-axis control with tube positioning... Send enquiry
CNC 60 HD Hydraulic Tube Cold Bending Machine, CNC multi-axis control with tube positioning device and bend table drive
Ø tube diameter: 16/60 mm
Max. Wall thickness: 5,5 mm
Min./Max. Bending radius: 20/200 mm
Max. tube length: 2,000 mm
Installation: 25 kW
Application: flanged tubes, flared tubes with loose flanges
Material: Steel, CuNiFe, stainless steel


CNC 60 HD MW Tube profile cold bending machine with multi-stack bending tools for Short set-up... Send enquiry
CNC 60 HD MW Tube profile cold bending machine with multi-stack bending tools for Short set-up times under high demands
Ø tube diameter: 16/60 mm
Max. Wall thickness: 5,5 mm
Min./Max. Bending radius: 30/ 150 mm
Max. tube length: 2,000 mm
Installation: 25 kW
Application: flanged tubes, flared tubes with loose flanges
Material: Steel, CuNiFe, stainless steel


CNC 80 HD Tube cold bending machine with tube positioning device and bend table drive Send enquiry
CNC 80 HD Tube cold bending machine with tube positioning device and bend table drive
Ø tube diameter: 25 /89 mm
Max. Wall thickness: 7,6 mm
Min./Max. Bending radius: 30/ 290 mm
Max. tube length: 2,000 mm
Installation: 25 kW
Application: flanged tubes, flared tubes with loose flanges
Material: Steel, CuNiFe, stainless steel


CNC 80 HD MW Tube cold bending machine with multi-stack bending tools for Short set-up times... Send enquiry
CNC 80 HD MW Tube cold bending machine with multi-stack bending tools for Short set-up times under high demands
Ø tube diameter: 25 /89 mm
Max. Wall thickness: 7,6 mm
Min./Max. Bending radius: 50 / 225 mm
Max. tube length: 2,000 mm
Installation: 25 kW
Application: flanged tubes, flared tubes with loose flanges
Material: Steel, CuNiFe, stainless steel


CNC 100 HD Tube and profile cold bending machine with tube positioning device and bend table drive Send enquiry
CNC 100 HD Tube and profile cold bending machine with tube positioning device and bend table drive
Ø tube diameter: 25 /114,3 mm
Max. Wall thickness: 8,6 mm
Min./Max. Bending radius: 50 / 350 mm
Max. tube length: 3,000 mm
Installation: 25 kW
Application: flanged tubes, flared tubes with loose flanges
Material: Steel, CuNiFe, stainless steel


CNC 100 HD MW Tube cold bending machine with multi-stack bending tools for Short set-up times... Send enquiry
CNC 100 HD MW Tube cold bending machine with multi-stack bending tools for Short set-up times under high demands
Ø tube diameter: 25 /114,3 mm
Max. Wall thickness: 8,6 mm
Min./Max. Bending radius: 75 / 300 mm
Max. tube length: 3,000 mm
Installation: 25 kW
Application: flanged tubes, flared tubes with loose flanges
Material: Steel, CuNiFe, stainless steel


CNC 165 HD Tube and profile cold bending machine with tube positioning device and bend table drive Send enquiry
CNC 165 HD Tube and profile cold bending machine with tube positioning device and bend table drive
Ø tube diameter: 44 /168,3 mm
Max. Wall thickness: 11 mm
Min./Max. Bending radius: 70 / 600 mm
Max. tube length: 4,000 mm
Installation: 40 kW
Application samples: flanged tubes, flared tubes with loose flanges
Material: Steel, CuNiFe, stainles


CNC 165 HD MW Tube cold bending machine with multi-stack bending tools for Short set-up times... Send enquiry
CNC 165 HD MW Tube cold bending machine with multi-stack bending tools for Short set-up times under high demands
Ø tube diameter: 44 /168,3 mm
Max. Wall thickness: 11 mm
Min./Max. Bending radius: 90 / 425 mm
Max. tube length: 4,000 mm
Installation: 40 kW
Application samples: flanged tubes, flared tubes with loose flanges
Material: Steel, CuNiFe, stainles


CNC 220 HD Tube and profile cold bending machine with tube positioning device and bend table drive Send enquiry
CNC 220 HD Tube and profile cold bending machine with tube positioning device and bend table drive
Ø tube diameter: 60/ 219,1 mm
Max. Wall thickness: 12,7 mm
Min./Max. Bending radius: 100 / 800 mm
Max. tube length: 5,000 mm
Installation: 40 kW
Application samples: flanged tubes,flared tubes with loose flanges
Material: Steel,CuNiFe,stainles


CNC 220 HD MW Tube cold bending machine with multi-stack bending tools for Short set-up times... Send enquiry
CNC 220 HD MW Tube cold bending machine with multi-stack bending tools for Short set-up times under high demands
Ø tube diameter: 60/ 219,1 mm
Max. Wall thickness: 12,7 mm
Min./Max. Bending radius: 120 / 550 mm
Max. tube length: 5,000 mm
Installation: 40 kW
Application samples: flanged tubes,flared tubes with loose flanges
Material: Steel,CuNiFe,stainles


CNC 265 HD Tube and profile cold bending machine with tube positioning device and bend table drive Send enquiry
CNC 265 HD Tube and profile cold bending machine with tube positioning device and bend table drive
Ø tube diameter: 76/ 273 mm
Max. Wall thickness: 15,1 mm
Min./Max. Bending radius: 150 / 1,000 mm
Max. tube length: 5,000 mm
Installation: 40 kW
Application samples: flanged tubes,flared tubes with loose flanges
Material: Steel,CuNiFe,stainles


CNC 265 HD MW Tube cold bending machine with multi-stack bending tools for Short set-up times... Send enquiry
CNC 265 HD MW Tube cold bending machine with multi-stack bending tools for Short set-up times under high demands
Ø tube diameter: 76/ 273 mm
Max. Wall thickness: 15,1 mm
Min./Max. Bending radius: 150 / 1,000 mm
Max. tube length: 5,000 mm
Installation: 40 kW
Application samples: flanged tubes,flared tubes with loose flanges
Material: Steel,CuNiFe,stainles


CNC 320 HD Tube and profile cold bending machine with tube positioning device and bend table drive Send enquiry
CNC 320 HD Tube and profile cold bending machine with tube positioning device and bend table drive
Ø tube diameter: 89/ 323,9 mm
Max. Wall thickness: 17,5 mm
Min./Max. Bending radius: 200/ 1,250 mm
Max. tube length: 6,000 mm
Installation: 40kW
Application samples: flanged tubes,flared tubes with loose flanges
Material: Steel,CuNiFe,stainles


CNC 350 HD Tube and profile cold bending machine with tube positioning device and bend table drive Send enquiry
CNC 350 HD Tube and profile cold bending machine with tube positioning device and bend table drive
Ø tube diameter: 114/ 355 mm
Max. Wall thickness: 19,1 mm
Min./Max. Bending radius: 200/ 1,500 mm
Max. tube length: 6,000 mm
Installation: 40 kW
Application samples: flanged tubes,flared tubes with loose flanges
Material: Steel,CuNiFe,stainles


CNC 420 HD Tube and profile cold bending machine with tube positioning device and bend table drive Send enquiry
CNC 420 HD Tube and profile cold bending machine with tube positioning device and bend table drive
Ø tube diameter: 114/ 419 mm
Max. Wall thickness: 21,4 mm
Min./Max. Bending radius: 200/ 1,750 mm
Max. tube length: 6,000 mm
Installation: 40 kW
Application samples: flanged tubes,flared tubes with loose flanges
Material: Steel,CuNiFe,stainles


SR 60 Electro-hydraulic Tube Cold Bending Machine for large wall thicknesses, CNC single-axis... Send enquiry
SR 60 Electro-hydraulic Tube Cold Bending Machine for large wall thicknesses, CNC single-axis control
Ø tube diameter: 16/60 mm
Max. Wall thickness: 5,5 mm
Min./Max. Bending radius: 20/ 200 mm
Max. tube length: 2,000 mm
Installation: 11kW
Application samples: High-Pressure pipelines (large wall thicknesses)
Equipment: rotating bend table,boost


SR 80 Electro-hydraulic Tube Cold Bending Machine for large wall thicknesses, CNC single-axis... Send enquiry
SR 80 Electro-hydraulic Tube Cold Bending Machine for large wall thicknesses, CNC single-axis control
Ø tube diameter: 25/ 89 mm
Max. Wall thickness: 7,6mm
Min./Max. Bending radius: 30/ 290mm
Max. tube length: 2,000 mm
Installation: 18,5kW
Application samples: High-Pressure pipelines(large wall thicknesses)
Equipment: rotating bend table,boost


SR 100 Electro-hydraulic Tube Cold Bending Machine for large wall thicknesses, CNC single-axis... Send enquiry
SR 100 Electro-hydraulic Tube Cold Bending Machine for large wall thicknesses, CNC single-axis control
Ø tube diameter: 25 / 114,3 mm
Max. Wall thickness: 8,6 mm
Min./Max. Bending radius: 50 / 500 mm
Max. tube length: 3,000 mm
Installation: 18,5 kW
Application samples: High-Pressure pipelines
Equipment: rotating bend table, booster unit


SR 165 Electro-hydraulic Tube Cold Bending Machine for large wall thicknesses, CNC single-axis... Send enquiry
SR 165 Electro-hydraulic Tube Cold Bending Machine for large wall thicknesses, CNC single-axis control
Ø tube diameter: 44/ 168,3 mm
Max. Wall thickness: 11mm
Min./Max. Bending radius: 70/ 600mm
Max. tube length: 3,000 mm
Installation: 22kW
Application samples: High-Pressure pipelines(large wall thicknesses)
Equipment: rotating bend table,boost


SR 220 Electro-hydraulic Tube Cold Bending Machine for large wall thicknesses, CNC single-axis... Send enquiry
SR 220 Electro-hydraulic Tube Cold Bending Machine for large wall thicknesses, CNC single-axis control
Ø tube diameter: 60 / 219,1 mm
Max. Wall thickness: 12,7 mm
Min./Max. Bending radius: 100 / 800 mm
Max. tube length: 3,000 mm
Installation: 22 kW
Application samples: High-Pressure pipelines
Equipment: rotating bend table, booster unit, tube s


SR 265 Electro-hydraulic Tube Cold Bending Machine for large wall thicknesses, CNC single-axis... Send enquiry
SR 265 Electro-hydraulic Tube Cold Bending Machine for large wall thicknesses, CNC single-axis control
Ø tube diameter: 76 / 273 mm
Max. Wall thickness: 15,1 mm
Min./Max. Bending radius: 150 / 1,250 mm
Max. tube length: 3,000 mm
Installation: 30 kW
Application samples: High-Pressure pipelines
Equipment: rotating bend table, booster unit, tube s


SR 320 Electro-hydraulic Tube Cold Bending Machine for large wall thicknesses, CNC single-axis... Send enquiry
SR 320 Electro-hydraulic Tube Cold Bending Machine for large wall thicknesses, CNC single-axis control
Ø tube diameter: 89 / 323,9 mm
Max. Wall thickness: 17,5 mm
Min./Max. Bending radius: 200 / 1,500 mm
Max. tube length: 3,000 mm
Installation: 30 kW
Application samples: High-Pressure pipelines
Equipment: rotating bend table,booster unit, tube


SR 350 Electro-hydraulic Tube Cold Bending Machine for large wall thicknesses, CNC single-axis... Send enquiry
SR 350 Electro-hydraulic Tube Cold Bending Machine for large wall thicknesses, CNC single-axis control
Ø tube diameter: 114 /355 mm
Max. Wall thickness: 19,1 mm
Min./Max. Bending radius: 200 / 1,750 mm
Max. tube length: 3,000 mm
Installation: 30 kW
Application samples: High-Pressure pipelines
Equipment: rotating bend table, booster unit, tube s


SR 420 Electro-hydraulic Tube Cold Bending Machine for large wall thicknesses, CNC single-axis... Send enquiry
SR 420 Electro-hydraulic Tube Cold Bending Machine for large wall thicknesses, CNC single-axis control
Ø tube diameter: 114 / 149 mm
Max. Wall thickness: 21,4 mm
Min./Max. Bending radius: 250 / 2,000 mm
Max. tube length: 3,000 mm
Installation: 30 kW
Application samples: High-Pressure pipelines
Equipment: rotating bend table, booster unit, tube
